Darwin FTW CONFIGURATOR

During the last years, more and more options have been added to the Darwin pedal series.
In order to make everything a bit more transparent, I have decided to update this section of the online shop and offer this "configurator". *Optional and additional parts are also here, please scroll to Additionals" at end of this page*

Note: Due to the longer waiting time (Darwin Availability List) it is possible to leave a 20% deposit when ordering your pedal. I'll ask for the remaining amount when the pedal is ready to be shipped.

If this is an option you'd prefer, please select "payment in advance" during checkout and leave a note "deposit via" and "paypal", "credit card" or "bank transfer". - I'll get back to you with all the details along with the purchase confirmation.



Select and the preferred option in each step to your cart, if you are considering some additional optionals, select and add them to your card as well in order to get an overview of your pedal configuration and proceed with the checkout.
Note: Custom Anodizing is not available anymore, sorry!



If you consider any additional parts such as additional footboard conversions, drive conversions, or an additional backpack or hardcase (note that the pedal already comes with one of those options), please check out the section "Darwin Adds" in the online shop AFTER you have finished your basic configuration.

If you have any questions or if you prefer to oder directly via email, feel free to contact me anytime.



Some links worth sharing:
Darwin Pedal Series Overview

Darwin Availability List

Frequently Asked Questions

Darwin Setup Guide




Every pedal is manufactured on order!
Please check availability here BEFORE placing an order!

PEDAL CONFIGURATION


Step 1: Pedal Type



Step 1:

Chose the type of pedal (Single Pedal, Double Pedal or Middle Pedal)



Important for Single Pedals:

RIGHT version - right foot

LEFT version - left foot

If no further options are chosen, the selected pedal type comes in the following "standard" configuration:
- Longboard
- Strap Drive
- Dynamic Beater with regular Felt surfaces
- Hard Case



- carefully machined & individually assembled by hand in Austria



All pedals come with regular and heavy springs and Beater memory lock



Every pedal is manufactured on order.  (check availability here)
For more information please follow this link: DARWIN FTW



726,00 €

  • Available
  • please check description for availability

Step 2: Footboard Type



IMPORTANT:  This "product" is part of the configurator and can only be purchased in combination with a Darwin drum pedal (Step 1). If you want to order footboards as an upgrade for your existing pedal, please scroll to "Additionals" in order to purchase parts independently.



Step 2:

Choose between Shortboard or Longboard. Both versions offer a durable black anodized surface to match the look of the pedal.



Shortboard:

The classic geometry. The foot board is expanded by a fixed heel part. The base plate is identical to the long board version.



Longboard:
Its length corresponds to the short board plus heel part. Due to the altered lever it runs light-footed and offers the opportunity to experiment.



Short- and Longboard share the same base plate, which makes it easy to swap them. The heel block is supported by solid ball bearings guarantee a stable and smooth performance.



Every pedal is manufactured on order.  (check availability here)



0,00 €

  • Available
  • please check description for availability

Step 2.1: Footboard Colour



IMPORTANT:  This "product" is part of the configurator and can only be purchased in combination with a Darwin drum pedal (Step 1). If you want to order footboards as an upgrade for your existing pedal, please scroll to "Additionals" in order to purchase parts independently.



Step 2.1:

Choose the colour of your footboard. Both options are treated identically and offer a super durable, anodized surface.

The only true difference is the colour itself.



Silver:

The natural anodized footboard has a silver looking surface and offers a nice contrast to the solid black parts of pedal. It also let the pedal "stick out" a bit more on the kit.



Black:

The black footboard perfectly matches the rest of the pedal which is almost entirely assembled from black anodized parts. It also offers great visibility for laser engravings if you consider something like that.



Every pedal is manufactured on order.  (check availability here)



0,00 €

  • Available
  • please check description for availability

Step 3: Drive System



IMPORTANT:  This "product" is part of the configurator and can only be purchased in combination with a Darwin drum pedal (Step 1). If you want to order parts as an upgrade for your existing pedal, please scroll to "Additionals" in order to purchase parts independently.



Step 3:
Choose between Strap Drive or Direct Drive
The Darwin is developed to offer a wide range customizable features, in order to fit a drummers very personal needs. Besides general adjustments, the FTW version can be switched between a StrapDrive and a DirectDrive setup within minutes. - If you want to get both, the additional drive is available as an option and can be selected later in this configurator.



Strap Drive:

The strap drive is the perfect alternative to conventional chain driven pedals. Due to modern materials, it offers more smoothness and less gyrating mass in comparison to a chain.

The belt was developed in collaboration with a German strap producer. It’s made of a thin mixture of nylon and kevlar and features a layer of neoprene on its support surface. The strap is smooth, high-tensile and absolutely wear-free and can be fixed at different positions on the foot board. Thus the height of the foot board can be optimized independent of the whole drive.

The geometry of the cam offers a defined tearing edge, which, if necessary, can be intensified or dampened by twisting the cam. By emphasizing the tearing edge, the beater is additionally speed up on the last part of its rotary motion.

Due to the belt drive you can’t just twist the cam, but you can also adjust it continuously from round to an eccentric pulley. In combination, both parameters offer many possibilities to alter the running characteristics to your personal preferences.



Direct Drive:

DirectDrive has developed a big fanbase and is a popular alternative to modern chain- or strap driven systems, with reason!

Set up as DirectDrive pedal, the Darwin uses the split cam to adjust the top leverage and cam-rotation. The former footboard height adjustment turns into a second way to change the drive's leverage with its very own characteristics. The length-adjustable DirectDrive link allows to set the preferred footboard hight independently from other parameters.

Experimenting with these adjustments is not only lots of fun, it also offers a world of possibilities.



Every pedal is manufactured on order.  (check availability here)



0,00 €

  • Available
  • please check description for availability

Step 4: Beater



IMPORTANT:  This "product" is part of the configurator and can only be purchased in combination with a Darwin drum pedal (Step 1). If you want to order beaters as an upgrade for your existing pedal, please go to "Upgrades" in order to purchase parts independently.



Step 4:

Choose between the Dynamic Beater or the n+1 Beater



Dynamic Beater:

A construction from aluminium with an optimized geometry and interchangeable rear weights and surfaces.

- black anodized

- fits all pedals

- incl. preassembled extra weight (stainless steel, behind the beater surface)

- Incl. one surface disc (felt, wood, or plastic,.. )



n+1 Beater:

The n+1 Beater shares many similarities with the Dynamic Beater which has been proven to work great for various setups. Besides the optic, the main difference is the position of the locking screw that also allows to slide the beater head back and forward. Mainly to adjust the distance and to remain an ideal 90° beater shaft when the beater hits the drumhead. This setup option can be very beneficial when there's no hoop clamp adjustment offered on the pedal. The optional weight (pre-mounted) is hidden behind the beater surface and can be removed without any additional tools.  The n+1 beater is compatible with all optional beater discs.



Every pedal is manufactured on order.  (check availability here)



0,00 €

  • Available
  • please check description for availability

Step 4.1: Beater Surface



IMPORTANT:  This "product" is part of the configurator and can only be purchased in combination with a Darwin drum pedal (Step 1). If you want to order parts as an upgrade for your existing pedal, please go to "Upgrades" in order to purchase parts independently.



Step 4:
Choose between various option for the stock beater surface.
(additional beater surfaces are available separately here)



Depending on the surface discs there are several weight options possible:

Beater incl. standard Beater Disc: 78g (69g*)

(35mm aluminum base with felt, wood or plastic)

Beater incl. heavy Beater Disc: 96g (87g*)
(35mm stainless-steel base with felt, wood or plastic)


*total weight without the pre-assembled weight

Current Beater Disc lineup:
Felt: 35mm Disc with felt surface
Wood: 35mm Disc with wood surface
Plastic: 35mm Disc mit with contoured POM surface
Mr. Muff: 50mm Disc with thick soft fabric



Every pedal is manufactured on order.  (check availability here)



0,00 €

  • Available
  • please check description for availability

Step 5: Transport



IMPORTANT:  This "product" is part of the configurator and can only be purchased in combination with a Darwin drum pedal (Step 1). If you want to order a case as an upgrade for your existing pedal, please scroll to "Additionals" in order to purchase cases independently.



Step 5:

Choose between the Darwin Backpack or the Darwin Hardcase.

(If you want to get both, the additional case is available as an option and can be selected later in this configurator)



Backpack:
Depending on how much extra space is needed, the pedal fits either completely "folded" along with personal essential, or just "traditionally" disassembled in this bag. The backpack comes with the "folding adapters" and also offers enough space for sticks and cables along with a separate 13" laptop section. The inside fitting is completely customizable to fit your personal needs.

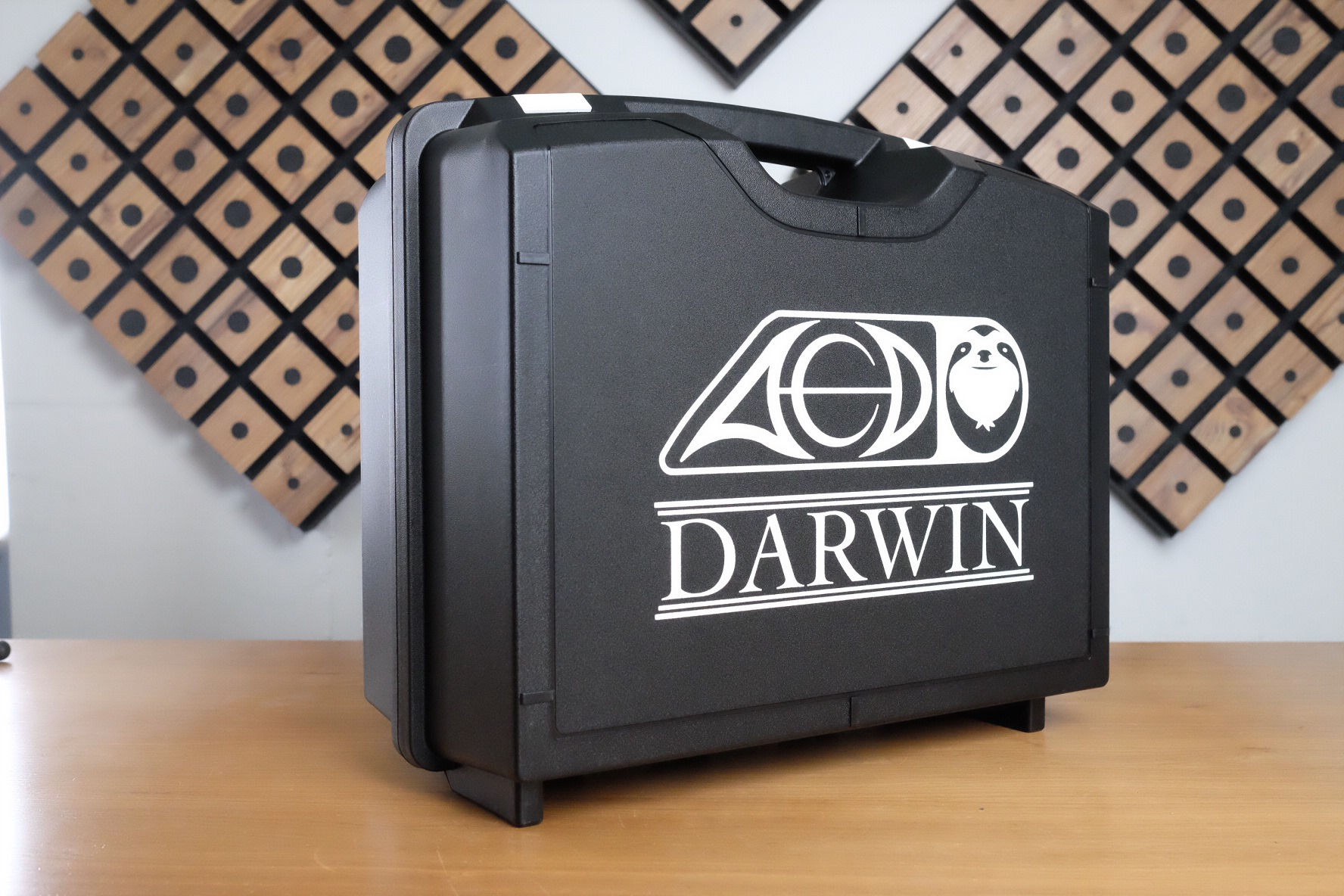

Hardcase:

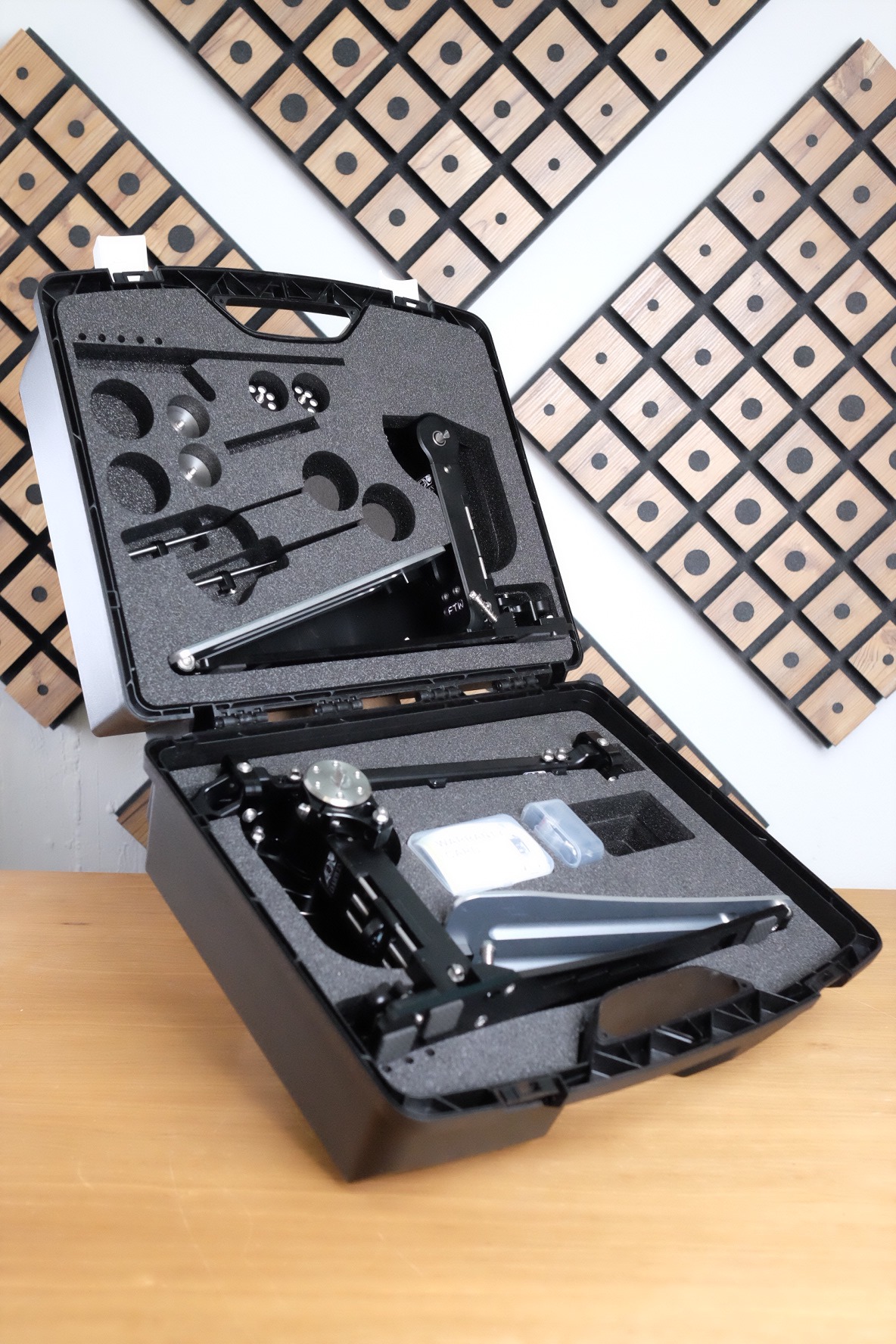

For those who need even more protection during rough touring days, the Darwin can also be delivered with a hardcase. Customized foam inserts either fit a single, double or middle pedal along with all additional parts. I'm currently trying to implement the transport options in the online shop, until then I clarify the preferred option with the purchase confirmation.



Every pedal is manufactured on order.  (check availability here)



0,00 €

  • Available
  • please check description for availability

OPTIONALS


Option 1: Custom Anodizing



IMPORTANT:  This "product" is part of the configurator and can only be purchased in combination with a Darwin drum pedal (Step 1).



Option 1: Custom Anodizing

The majority of parts is CNC machined from high grade aluminum (7075 & 6061) which allows a surface treatment called "anodizing". In stock configuration all aluminium parts get a durable black anodized surface. If you want your pedal to be even more unique, there's the option of adding a 2nd custom color combination like the example below. If you are interested, please add this option to your cart and.  After your order, I'll get back to you to discuss your wishes and all possibilities to create a unique looking pedal.  Please note that anodizing is a chemical treatment and not a paint job. RAL colours are not possible and this option is limited to "basic colours" as shown below.

More complex color combinations (such as the gold&green middle pedal) are possible as well. The costs would be slightly higher in order to cover all expenses for having more parts treated individually.  - just let me know in advance.



Every pedal is manufactured on order.  (check availability here)



400,00 €

  • Available
  • please check description for availability

Option 2: Laser Engraving



IMPORTANT:  This "product" is part of the configurator and can only be purchased in combination with a Darwin drum pedal (Step 1).



Option 1:  Laser Engraving

Pick this option if you'd like to have your band logo or something unique engraved on the footboards or eventually anywhere else. If you are interested, please add this option to your cart and.  After your order, I'll get back to you to discuss your wishes and all possibilities to create a unique looking pedal.  The asked price is for setting up the machine and covers the engraving of all footboards of your order.



Every pedal is manufactured on order.  (check availability here)



75,00 €

  • Available
  • please check description for availability

ADDITIONALS

If you consider any additional parts such as additional footboard conversions, drive conversions, or an additional backpack or hardcase (note that the pedal already comes with one of those options), please check out the section "Darwin Adds" in the online shop AFTER you have finished your basic configuration.
